Shipping Container Dimensions & Sizes (UK Guide)

Shipping Container Dimensions Explained

Choosing the correct shipping container size is essential whether you’re looking to hire, buy or convert a shipping container. External footprint, internal space and container height all affect whether a container is suitable for your site, access requirements and intended use.

This guide provides clear, accurate shipping container dimensions in both metric and imperial measurements, allowing you to compare sizes easily and choose the right container for your project.

  • External dimensions show the overall footprint of the container and are essential for site planning, transport and access.
  • Internal dimensions show the usable space inside the container and are particularly important for storage layouts and container conversions.

Container height is available in two main formats:

High cube containers are commonly selected for workshops, plant rooms and conversion projects where extra height is beneficial.

  • Dimensions may vary slightly depending on the container manufacturer
  • Internal measurements will be reduced if a container is insulated or converted
  • Refrigerated (reefer) or insulated containers have smaller internal dimensions than standard containers

If your project has specific space or access requirements, we recommend speaking with our team before ordering.

Standard Shipping Container Dimensions – Imperial

External Container Dimensions (Imperial)

Container Length8ft10ft20ft30ft40ft
Container Width7ft 1in8ft8ft8ft8ft
Container Height (standard)7ft 5in8ft 6in8ft 6in8ft 6in8ft 6in
Container Height (high cube)9ft 6in9ft 6in9ft 6in9ft 6in

Internal Container Dimensions (Imperial)

Container Length8ft10ft20ft30ft40ft
Internal Length7ft 6in9ft 2in19ft 3in29ft 4in39ft 4in
Internal Width6ft 11in7ft 7in7ft 7in7ft 7in7ft 7in
Internal Height (standard)6ft 8in7ft 9in7ft 9in7ft 9in7ft 9in
Internal Height (high cube)8ft 9in8ft 9in8ft 9in8ft 9in
End Door Aperture Width6ft 10inas req.7ft 6in7ft 6in7ft 6in
End Door Aperture Height (standard)6ft 4inas req.7ft 5in7ft 5in7ft 5in
End Door Aperture Height (high cube)as req.8ft 5in8ft 5in8ft 5in
Floor Area51sq ft72sq ft150sq ft227sq ft305sq ft
Cubic capacity (standard)348cu ft560cu ft1160cu ft1760cu ft2360cu ft
Cubic capacity (high cube)630cu ft1310cu ft1985cu ft2660cu ft
Weight1 ton1.5 tons2.4 tons3.2 tons4 tons

Standard Shipping Container Dimensions – Metric

External Container Dimensions (Metric)

Container Length2.42m (8ft)3.05 (10ft)6.06m (20ft)9.12m (30ft)12.19m (40ft)
Container Width2.17m2.44m2.44m2.44m2.44m
Container Height (standard)2.26m2.59m2.59m2.59m2.59m
Container Height (high cube)2.89m2.89m2.89m2.89m

Internal Container Dimensions (Metric)

Container Length2.42m (8ft)3.05 (10ft)6.06m (20ft)9.12m (30ft)12.19m (40ft)
Internal Length2.28m2.80m5.87m8.93m12.00m
Internal Width2.10m2.33m2.33m2.33m2.33m
Internal Height (standard)2.04m2.35m2.35m2.35m2.35m
Internal Height (high cube)2.65m2.65m2.65m2.65m
End Door Aperture Width2.09mas req.2.28m2.28m2.28m
End Door Aperture Height (standard)1.94mas req.2.26m2.26m2.26m
End Door Aperture Height (high cube)as req.2.56m2.56m2.56m
Floor Area4.78m26.69m213.93m221.09m228.33m2
Cubic capacity (standard)9.28m315.89m332.85m349.84m366.83m3
Cubic capacity (high cube)17.84m337.09m356.21m375.32m3
Weight1.02 tonnes1.52 tonnes2.44 tonnes3.25 tonnes4.06 tonnes

Download Detailed Container Dimension Documents

Container Dimensions – Imperial
Detailed dimensions for 8ft, 10ft, 20ft, 30ft and 40ft shipping containers in imperial units


Container Dimensions – Metric
Full container specifications in metric measurements


Buyer’s Guide to Shipping Containers
Everything you need to know before buying a shipping container, including sizing, condition and key considerations

Ready to Move Forward?

If you already know what size container you need, explore our shipping container hire, shipping container sales and custom container conversion services.

Our team can advise on availability, delivery, site access and specification.

If you still require help choosing the right container size, contact us today for expert advice and a fast, free quotation.

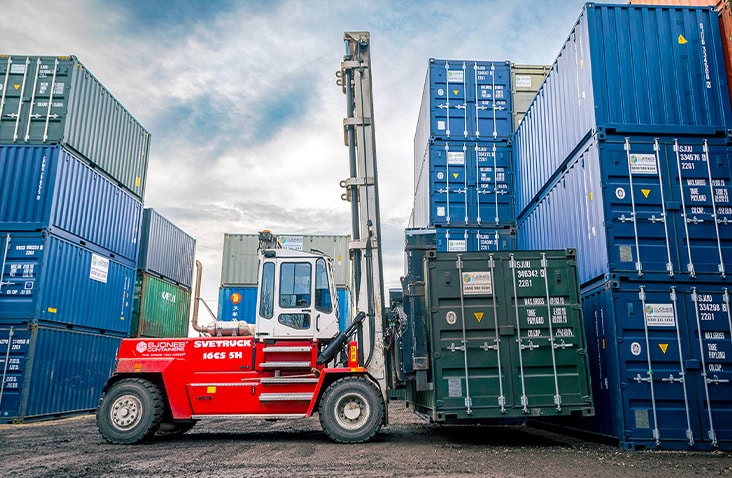

Container handler lifting and positioning a green shipping container between stacked containers at the S Jones Aldridge depot, showing active container handling and yard operations.
